CH32V006 Servo Controller Dev Board - Initial Design

Swapping a $1.85 STM32F301 for a $0.22 CH32V006 sounds like a one-line BOM edit. It turned into the most complex board I’ve designed yet, weeks in KiCad, and several rounds of Reddit PCB review before I felt good about sending it out.

If you’re new here, OpenServoCore is my effort to turn low-cost servos like the MG90S into smart actuators with cascade control and DYNAMIXEL-style communication over single-wire UART (DXL TTL). This board is the firmware development platform for that move, and the first dev board to actually exercise the new MCU end to end.

Inside: three-way power ORing for USB-C, bench supply, and 1S/2S LiPo direct, low-side current sensing through CH32V006’s internal PGA op-amps, motor terminal voltage sensing for back-EMF, an NTC to replace the STM32’s internal temperature sensor, single-wire DXL TTL through a 74LVC2G241 buffer, and probably more test points than strictly necessary. Off to PCBWay, since JLCPCB was out of CH32V006F8P6 the day I hit submit.

Update 04/08/2026

There were some issues with this board — specifically, VCC/VDD was swapped, and some silkscreen labels were wrong. I’ve updated them here, and the images are now correct.

Update 04/09/2026: JLCPCB now has about 2000 units of CH32V006F8P6 as of today, which means they can make and assemble the full board without issues.

Overview

Here is a quick peek at the board.

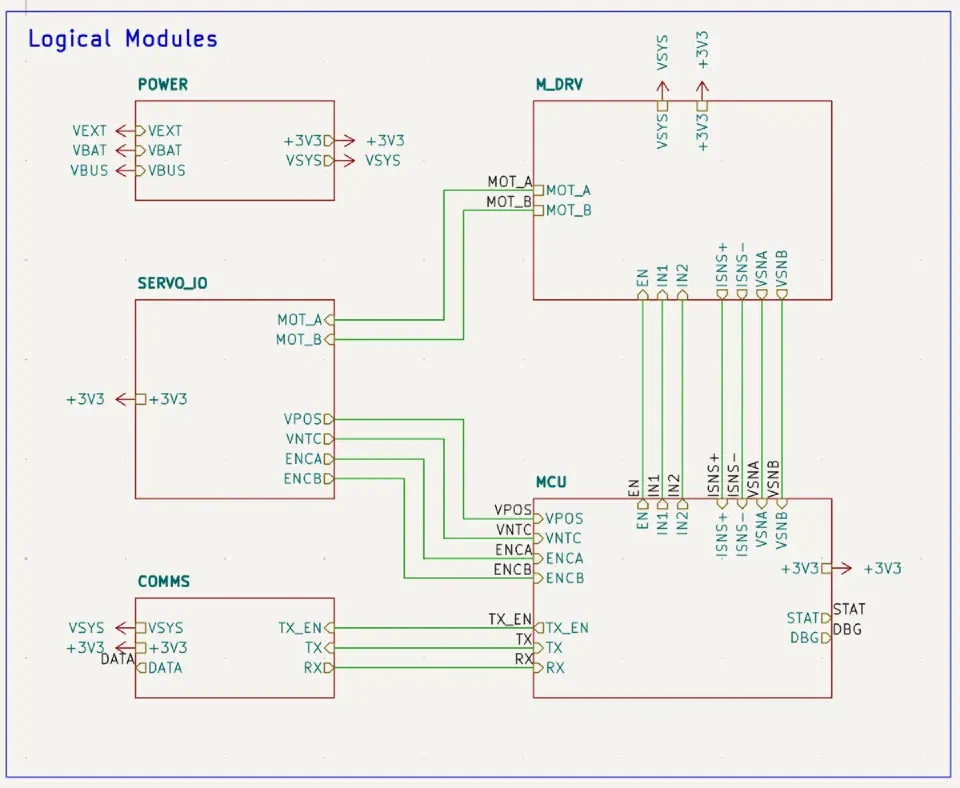

And here are the top level modules. As the schematics grew and grew, I finally decided to organize the components into modules and sub-sheets, which gave me more room for nicer schematic layouts and documentation.

The board is split into the following modules:

• POWER - Power Subsystem. It contains different power sources and LDO.
• SERVO_IO - Servo IO Subsystem. Used to interface with a gutted servo, and some servo related sensors.
• COMMS - DXL TTL Subsystem. Single wire UART implementation.
• M_DRV - Motor Driver Subsystem. Contains DRV and current / voltage sensors.
• MCU - MCU Subsystem. Contains CH32V006 MCU and associated hardware.
• DIAGNOSTICS (not shown) - Test Point arrays.

If you want to take a closer look, you can download the KiCad project at the OpenServoCore Github Repository .

Schematic Tour

Compared to the STM32-based dev board, which only had current sensing and a single power source, this design expands on the old board’s capabilities so I have more room to experiment with more sophisticated control schemes later on.

Power

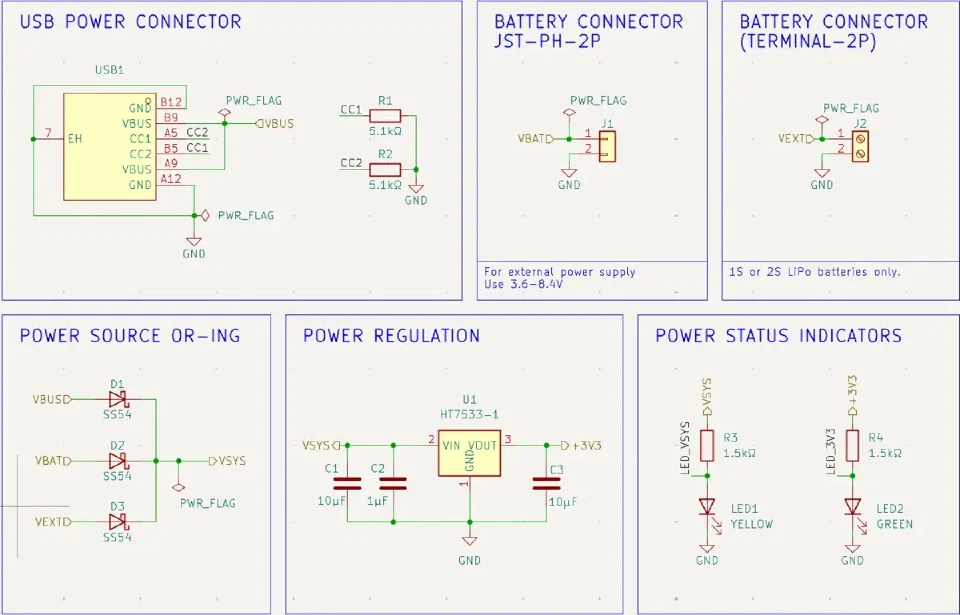

I chose to provide three different ways to power this board:

• USB-C - 5V/2A. Standard and portable power for everyday firmware testing.
• Screw Terminal - For bench power supply with different voltages.
• JST (PH) - Standard LiPo battery for higher amperage / real-world application.

I have chosen components to support 3.6V (1S LiPo 80% empty) ~ 8.4V (2S LiPo full charge) so that the servos can ultimately run directly from LiPo battery power sources without needing another regulator.

One aspect of the design that took me a long time to finalize was the Power Source ORing. Initially I wasn’t happy about the Schottky diodes (SS54) because they introduce about 500mV of voltage drop. I ran quite a few LTspice simulations with MOSFET-based schemes and wasn’t able to find a way to do it cheaply for three-way power ORing. Maybe some power engineer can do this with pure passives only, but after 2 weeks of trial and error, I decided to go back to the simpler Schottky diodes.

The LDO is the HT7533-1. I chose it mainly for its 3V–36V input voltage, which will work with 1S–2S LiPo batteries. The 200mA of current is also plenty for the CH32V006 MCU plus a few passives and LEDs. Another reason is that it is also very cheap, at about $0.11 per unit. Finally, this is a JLCPCB basic component, and I try to prioritize basic components as much as possible to reduce PCB assembly cost.

Motor Driver

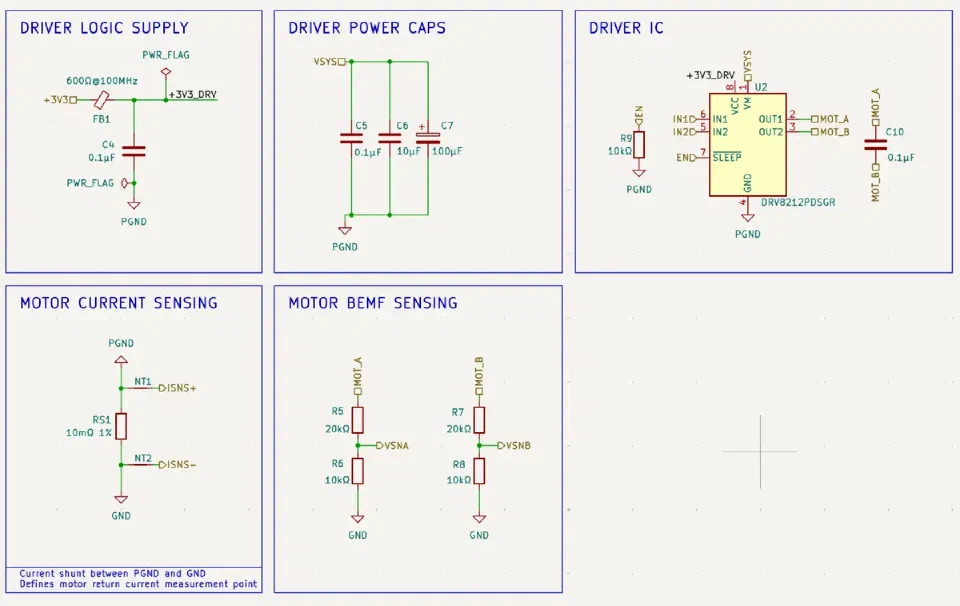

The STM32-based board used current mirroring from the DRV8231A motor driver. To reduce BOM cost, I decided to use the low-cost DRV8212 instead. The current sensor is built around a low-side shunt resistor (RS1) and a pair of Kelvin traces (ISNS+, ISNS-) that lead to CH32V006’s internal op-amps with programmable gain. This increases the footprint a bit, but reduces the cost per board by about $1 each.

As a result of low-side power shunt current sensing, we now have split ground (PGND and GND). A ferrite bead and capacitor are used to try to isolate the logic ground from the power ground — we’ll see how this goes.

The previous STM32 board also didn’t have voltage sensing, which limited visibility into the motor during system control. This board adds voltage sensors (VSNA, VSNB) on both motor terminals via voltage dividers. Now it’s possible to sense back-EMF, which opens the door to more accurate control loops. This can also be used to approximate system voltage.

Lastly, I added a 100uF electrolytic capacitor to reduce current ripple caused by the servo motor. This should help with voltage and current stability.

Gutted Servo IO

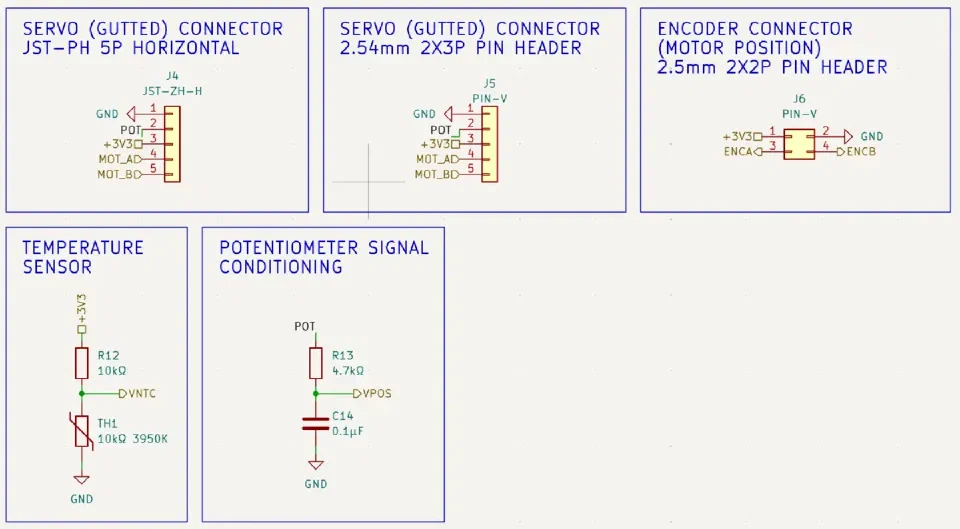

This module interfaces with a gutted servo (as in the servo with the controller board taken out) through one of the two servo connectors (J4 or J5). I used a regular pin header as well as a JST-ZH connector. Personally, I have JST-ZH connectors wired on my gutted servos, and I’d recommend doing the same to prevent plugging it backwards at 3AM and creating magic smoke. The gutted servo should have two wires for the motor terminals (MOT_A and MOT_B), as well as 3 wires for the potentiometer (+3V3, POT, GND).

STM32F301 has an internal temperature sensor that CH32V006 lacks. I used this as the baseline for motor winding temperature estimation, so the new board needs some way to sense ambient temperature to match. This is done via the 10kΩ NTC (TH1). It is very low cost. The VNTC net goes to the ADC for temperature sensing.

Servo position sensing works mostly the same as the previous STM32-based board. I added a 4.7kΩ/0.1µF RC filter to smooth out jitter as a safety measure. Probably not needed, but it’s extra insurance. The VPOS net goes to the MCU ADC for position sensing.

There are two more ADC channels left on the MCU, and for future expansion, the most likely use would be an optical quadrature encoder similar to Adam’s ServoProject. So I made a connector with ENCA, ENCB, 3V3, GND for future expansions.

Single Wire UART (Dynamixel TTL style)

I wanted OpenServoCore to be as simple as a board swap. That means you can even reuse the 3-wire connectors from traditional servos — however, the PWM wire is now single-wire UART, aka DXL TTL .

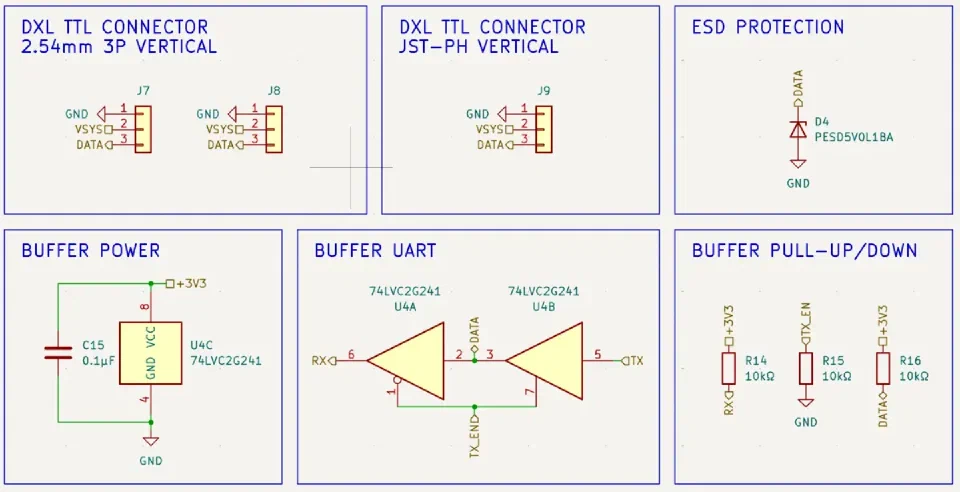

The STM32 dev board only had regular UART connectors. This board integrates single-wire UART intended to work directly with existing Dynamixel TTL-style connectors. I implemented this using a 74LVC2G241 dual tri-state buffer, following the Dynamixel Reference Design .

One deviation from the reference design is that I removed the non-essential pull-up on the TX pin and intend to use the internal MCU pull-up instead. I also tossed in ESD protection on the DATA line for good measure.

For connectors, I added two 1x3 pin headers and a JST PH header for the TTL connectors. This is so we can actually connect standard Dynamixel accessories and test out compatibility. One fun thing you can do is actually use those connectors to chain multiple dev boards together to simulate a servo bus.

MCU

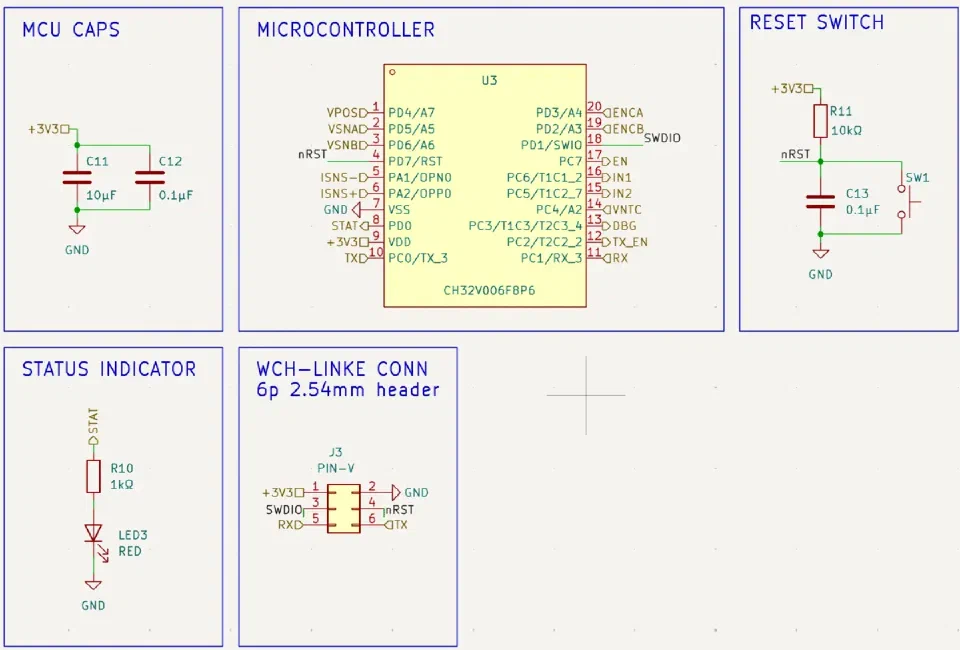

With all the complexities spread across the other subsystems, the MCU block itself is actually pretty straightforward. The biggest difference here is obviously the switch to the CH32V006, which comes in at around $0.22 a piece, while the `STM32F301` is closer to $1.85 each, despite being in a fairly similar class for this project. This is probably the biggest cost savings for this design.

I chose a 2x3 pin header for the debugger (J3). This is intended to be connected to the WCH-LinkE debugger for firmware programming and debugging. One interesting feature of the WCH-LinkE debugger is that it also comes with a UART to USB adapter, which I will be using to send DXL commands to the controller. Other than that, there is also a status LED and a physical reset switch.

Diagnostics

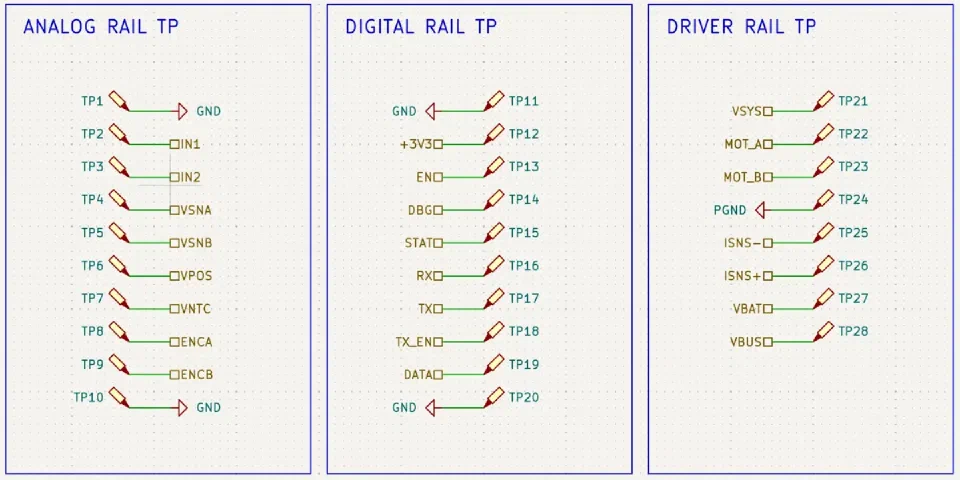

Last but not least, I added two horizontal rails and a vertical rail of Test Point Hooks (KS-5015/RH-5015) for easy scope / digital analyzer access. I think this really accentuates the overall design for some reason… I might have gone a bit overboard, but I’m not regretting it.

Next Steps

This board took me a while to design, and is honestly the most complex board I have designed so far. I also learned some cool tricks like inverted text for silkscreen labels that make the board look even better.

If the first spin gives me a stable platform for bring-up, sensing, motor control, and DXL-style communication, then it has already done its job. This is probably the final version (fingers crossed) of the dev board that will act as the main hardware platform for the OpenServoCore firmware development. Separate production boards (for lack of a better name) will be designed in the future for each servo class / type, e.g. SG90, MG90, etc, so they can fit inside the servo chassis, but will largely follow this overall design.

Finally, JLCPCB ran out of CH32V006F8P6 and I don’t want to purchase them off AliExpress separately and assemble this myself, so I sent the design to PCBWay for fabrication and assembly after Reddit community reviews. Hopefully everything goes well!

As always, you can find the KiCad project on the OpenServoCore GitHub repo .
