CH32V006 Servo Controller Dev Board (Rev. A) First Spin - Lessons from a Faulty Revision
Three embarrassing mistakes, two failed surgeries, one working board. The 3.3V rail sat at 0.84V, I fed reverse voltage into a $0.22 MCU across multiple power-on cycles, and somehow it still came back to life.
If you’re new here, OpenServoCore is my effort to turn cheap MG90S-class servos into networked smart actuators with sensor feedback, cascade control, and a DYNAMIXEL-style TTL bus. The CH32V006 dev board is the firmware development platform for this project. This is the first-spin bringup of Rev A, generously sponsored by PCBWay for both PCB and assembly.
What’s inside: PCBWay catching footprint and BOM mistakes I missed (and KiCad’s DRC missed), a wrong house number that sent the boards to my neighbor, mislabeled test points that fed 3.3V into the EN pin, the moment I realized I’d swapped VDD and VCC on the schematic, and an hour of magnet-wire surgery under a magnifier to bring one board back. The CH32V006 is, it turns out, surprisingly tough.
The Ordering Process
Before I get into the debugging saga, I want to talk about the ordering experience, because it turned out to be more eventful than I expected (entirely my fault, as you will soon see is a recurring theme in this post).
After uploading my Gerber files, Chloe from PCBWay’s team came back and pointed out that some of my pad clearances on the SN74LVC2G241DCUR dual buffer were under 0.19mm, which could cause solder mask bridging and potential shorts. The funny thing is that this was a standard KiCad footprint, and KiCad’s own DRC didn’t flag it either. I ended up swapping it for the LCSC footprint, which had the correct clearances. So before the board even went into production, PCBWay had already caught a mistake that neither I nor KiCad did.
Then during BOM review, I realized I had submitted the wrong shunt resistor value for RS1 (100 mOhm instead of 10 mOhm). The order was already in review, and I had to sheepishly email them asking for a last minute swap. They updated it without any fuss. At this point I was starting to wonder how many more of my own mistakes PCBWay was going to have to deal with before I even got the boards.

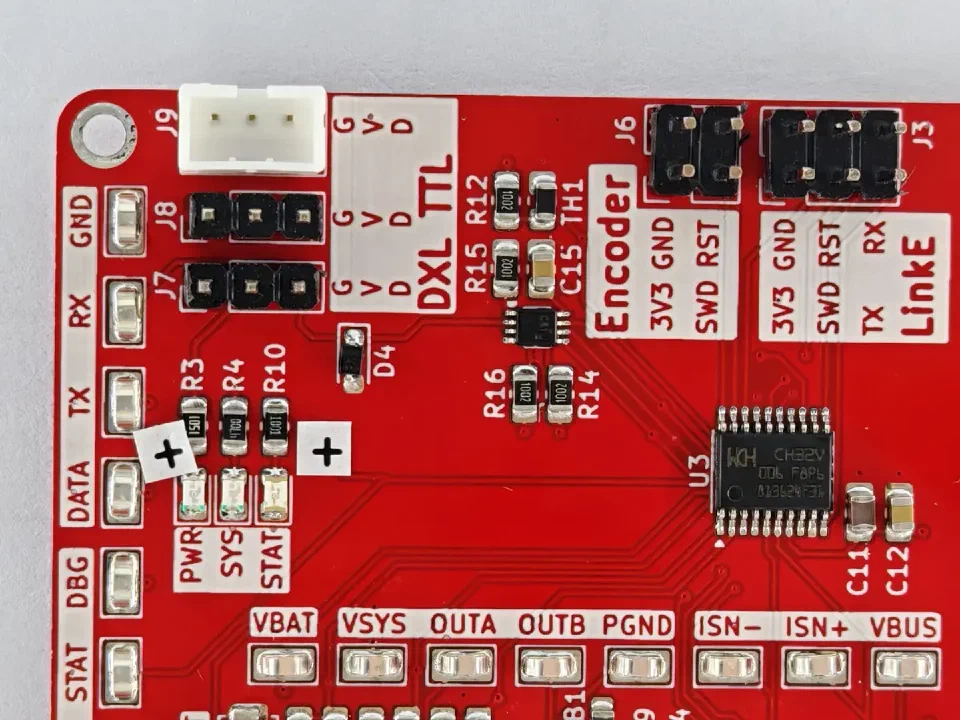

Later on, Yilia from their team sent me photos of the assembled boards and asked me to confirm component orientation and LED polarity before they finished soldering the through-hole parts. They even placed little paper cutouts with “+” signs next to the LED anodes so I could easily verify the orientation in the photos, which I thought was a nice touch.
That kind of back-and-forth is not something I’ve experienced with other providers. Most of the time you upload your files, pay, and hope for the best.
In terms of pricing, PCBWay is not the cheapest option out there. But for someone like me who apparently can’t stop making mistakes, having a team that actually reviews your files and catches problems before they go into production probably ends up being cheaper in the long run. One less wasted spin pays for itself pretty quickly.
It’s also worth mentioning that at the time of this order, the CH32V006F8P6 was not available on either JLCPCB or LCSC. The only way to get it assembled through JLCPCB would have been to buy the parts off AliExpress and solder them myself. PCBWay was able to source the parts and assemble the full board, so you don’t have to worry about whether your entire BOM is available on LCSC. They will find the parts for you.
Unboxing (Eventually)
After a few weeks, I got a notification that the boards had arrived.
That should’ve been the easy part. Instead, my first debugging task turned out not to be the board, but the shipping address. The tracking page said the package had arrived at my front door, but there was nothing there. After checking around the house and running around in circles in a panicked daze, I went back to the order details and realized I had entered the wrong house number. Embarrassing mistake #1. The package had been delivered to my neighbor instead. Luckily my lovely neighbor kept it safe for me.
After thanking my neighbor and skipping home like a five year old, I immediately opened the package. Seeing the red boards in front of me had made my day.

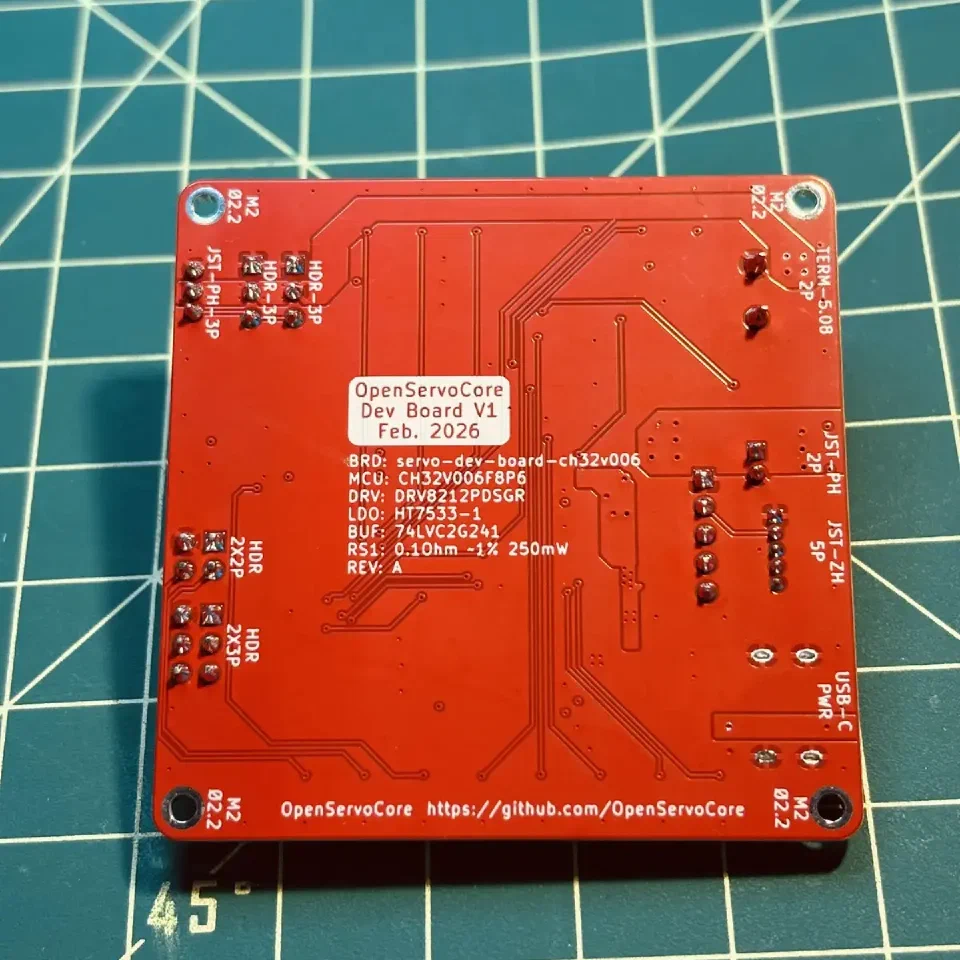

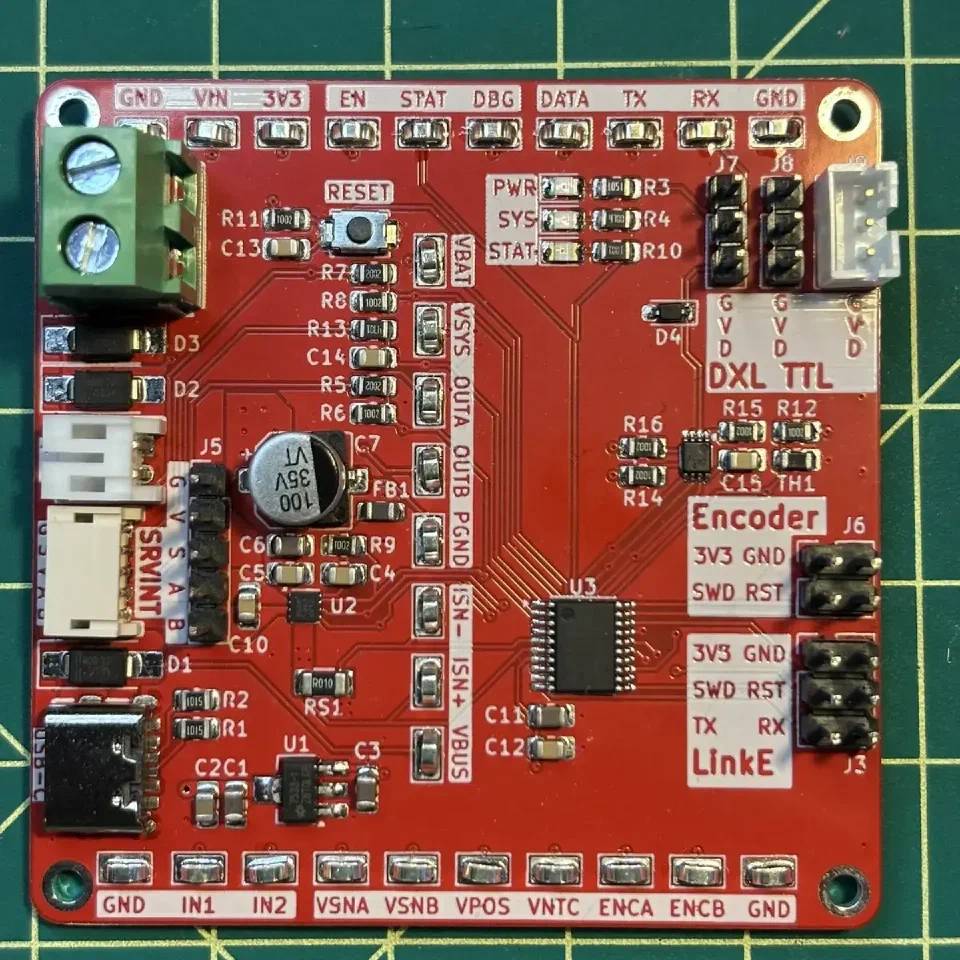

Here is how the first revision turned out:
At this point, I thought the hard part was over. I got my boards safely in my palm, I just needed to plug it in and start writing firmware. Well, what a remarkably naive assumption.
Powering On
When I plugged in the USB-C cable to the board, the first thing I noticed is that the 3.3V rail LED didn’t light up. This is an immediate bad sign, it means something past the LDO is not working right. I pulled out my multimeter and measured the voltage on the rail: 0.84V. Board defect? Design error? Bad parts? My mind raced through different possibilities. The components on the board felt cold, and I didn’t smell any magic smoke, which is a good indication that nothing is shorted. But to be safe, I unplugged the power and started probing with my multimeter. Nothing obvious.
Out of ideas, I decided to test the other boards to see if it was a manufacturing defect. The results came up exactly the same: 3.3V LED not lighting up. So it wasn’t a board defect. It’s either the LDO or my design.
To eliminate the possibility of a faulty LDO, I hooked up the GND and +3V3 rails with an external 3.3V power source. Still 0.84V. The conclusion was clear: PCBWay did a good job, but my design had failed.
Debugging
After narrowing it down to a design issue, I hunted through the KiCad PCB design file looking for misplaced vias, traces, or design violations. Nothing. I stared at the schematics again. Still nothing suspicious.
Out of options, I started randomly poking around different test points. At some point, I decided to hook the external 3.3V supply to what was labeled as the +3V3 test point hook.
I heard a pop and magic smoke came out. I immediately thought I had just fried the board. But then, the green LED lit up. I stared at it for a moment, confused. I measured the +3V3 rail: 3.3V. What?
Something had clearly burned open, but I couldn’t even tell where the pop came from. Then I looked at the PCB design more carefully and had my second moment of shame: the top row of test point hooks are all labeled wrong. Embarrassing mistake #2. I must have been shifting the nets during layout and forgot to update the silkscreen labels. That “3V3” test point was actually the EN pin between the MCU and the DRV. By feeding 3.3V directly into it, I had fried either the DRV or the MCU, and whatever burned open had stopped dragging the 3.3V rail down to 0.84V.
To figure out which one was the culprit, I grabbed a fresh board and started desoldering components one at a time. First the DRV, with a hot air reflow tool. Plugged it in, still the same. Then the MCU, and the 3.3V LED lit up.
I stared at the MCU schematic for a good 10 minutes, and then it hit me. Embarrassing mistake #3, and the rookiest one of all: I had swapped VDD and VCC.
The Board Surgery
With the root cause identified, the fix was conceptually simple: lift the VCC/VDD leads of the MCU and wire them correctly. Whether it would actually work was another question. I had no idea if the MCU was still alive after being fed reverse voltage. But there was no other choice, I had 5 boards and all of them had the same design error. The only encouraging sign was that nothing had released magic smoke during normal power-on, which meant the MCU might have survived.
Attempt #1
I lifted the VCC/VDD leads on the already desoldered MCU, and reflowed the chip back onto the board. But during soldering of the tiny magnet wires, I yanked the VCC lead a bit too hard and it snapped clean off. Out of morbid curiosity, I decided to power on the board anyway, just to see what would happen.
To my surprise, the debugger recognized the MCU. I wrote a quick blinker app and flashed it, no issues. The STAT LED was permanently on and all GPIO pins read 3.3V due to the disconnected VCC, so it wasn’t a functional board, but the MCU was alive. That was huge.
Attempt #2
Encouraged, I moved on to board #3. This time, instead of desoldering the entire MCU, I tried a more targeted approach: cut the trace from the decoupling capacitor to the VCC lead, then cut and lift the VDD pin from the ground plane. I went in with the knife, but cut the VDD lead a bit too aggressively and the whole lead fell off. Another board down. I had to stop, put everything away, and walk away for the night. Two failed attempts in a row was enough for one day.
Attempt #3
The next day, with steadier nerves, I came back and reviewed the PCB layout more carefully. This time I planned every cut before touching the board. The approach: cut both the decoupling capacitor trace and the ground plane connection, verify isolation with continuity measurements, and then bridge the corrected connections with thin magnet wire.
The cutting and scraping went fine. The hard part was soldering the magnet wire. The leads on the QFP package are tiny, and the wire kept slipping off. I bridged adjacent leads multiple times and had to wick them clean. The wire wouldn’t stay in place while I tried to tack it down. I found myself holding my breath, magnifying glasses on, taking deep breaths between each attempt. After about an hour of shaky hands and generous amounts of flux, I finally got the wires to behave by pressing them against the body of the MCU. This let me hold the wire steady while aligning it with the leads precisely. I measured continuity one more time. Good.
It Works

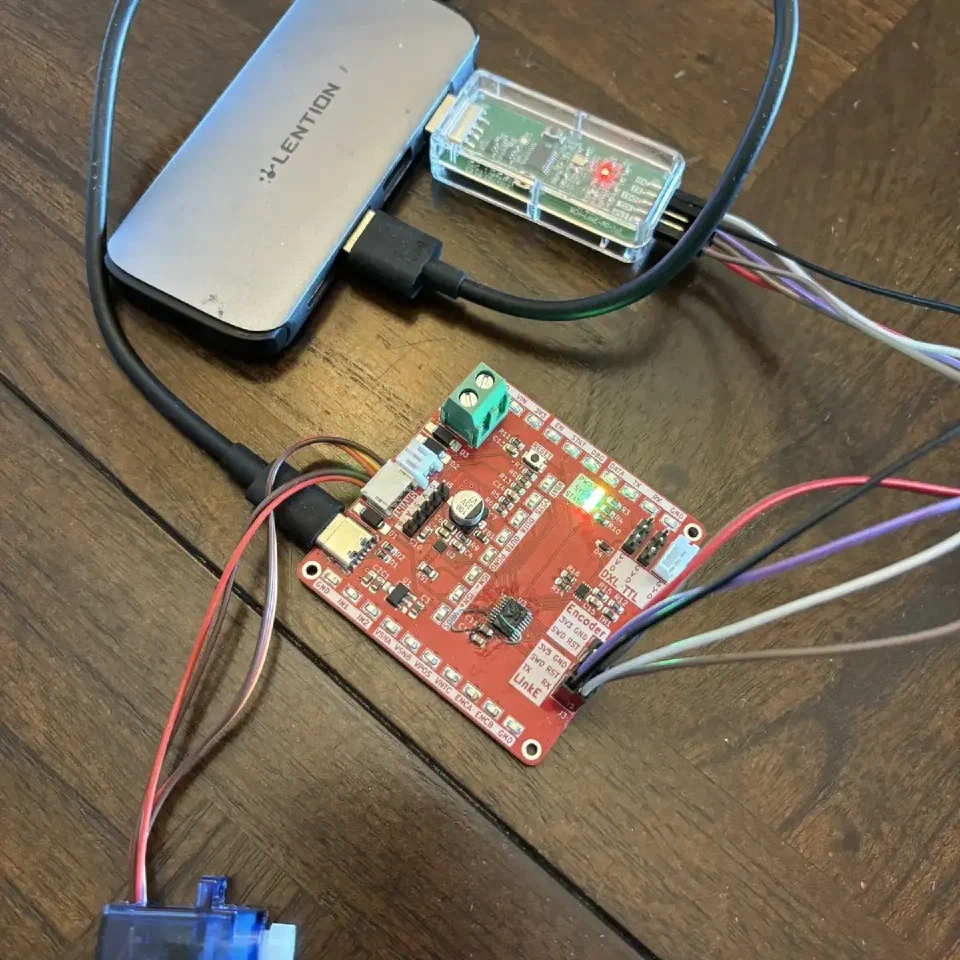

I plugged in the board, flashed the blinker app, and the STAT LED started blinking. This means the GPIO block of the MCU didn’t get fried by the reverse voltage and is functioning as if nothing had happened to it. I can’t believe it actually works! Then I brought up UART and that worked too.
With a sigh of relief, I had salvaged the board, with one extra board left for backup.
It’s also worth noting just how resilient the CH32V006 turned out to be. This chip took reverse voltage on its power pins across multiple power-on cycles and still came back to life. For a $0.22 MCU, that’s pretty impressive. I would not have expected it to survive, let alone run firmware afterwards.
As for the boards themselves, I did not see any issues with manufacturing and they are of high quality. If I want to nitpick, the test point hooks are not aligned perfectly, but that’s kind of expected due to how big the TP footprints are and the reflow process probably caused those hooks to float a bit. This is purely cosmetic however, and I probably should’ve used a smaller footprint anyway.
What’s Next
I pushed out fixes to the design on GitHub and updated my previous post with the corrected schematics. My next step is to fully verify the board, testing the DRV, UART buffer, ADCs, and the various sensors. Now that I know which pin is real power and which one is real ground, hopefully Rev. B will be a smoother sail.
Three embarrassing mistakes, two failed surgeries, and one working board. I’ll take it.
